Size
Metric
British

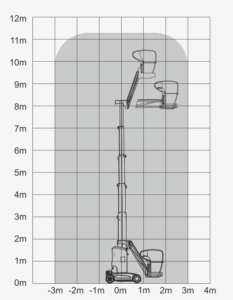

Max. Working Height
11.20m
36ft 9in
Max. Platform Height
9.20m
30ft 2in

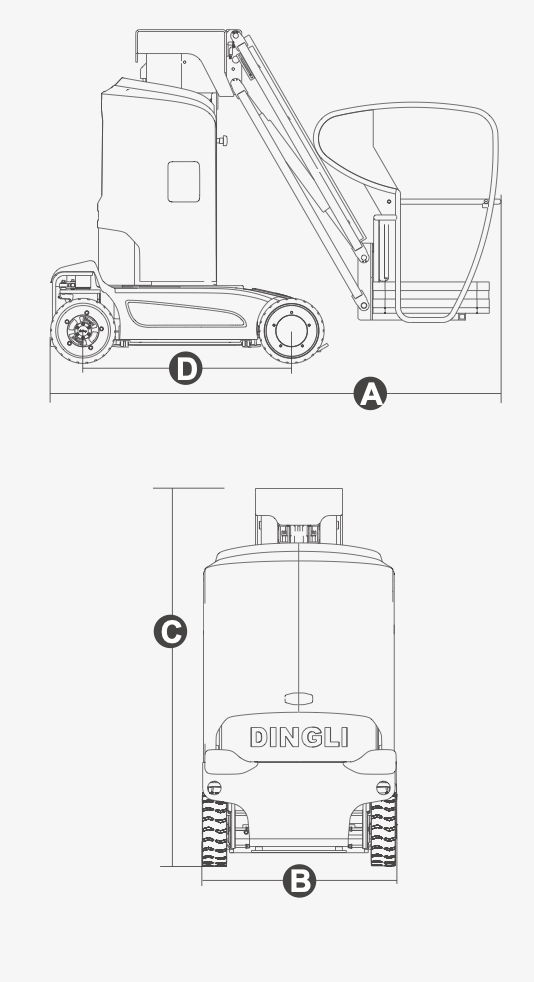

Overall Length
A
2.62m
8ft 7in
ELECTRIC
Overall Width
B
1.00m
3ft 3in
Overall Height
C
1.99m
6ft 6in
Platform Size(Length/Width)
0.69m×0.93m
2ft 3in×3ft 1in
Ground Clearance(Stowed)
0.07m
3in
Ground Clearance(Raised)
0.02m
1in
Wheelbase
D
1.22m
4ft
Turning Radius(Inside/Outside)
0m/1.80m
0/5ft 11in
Tyres
Φ381×127mm
1ft 3in×5in
